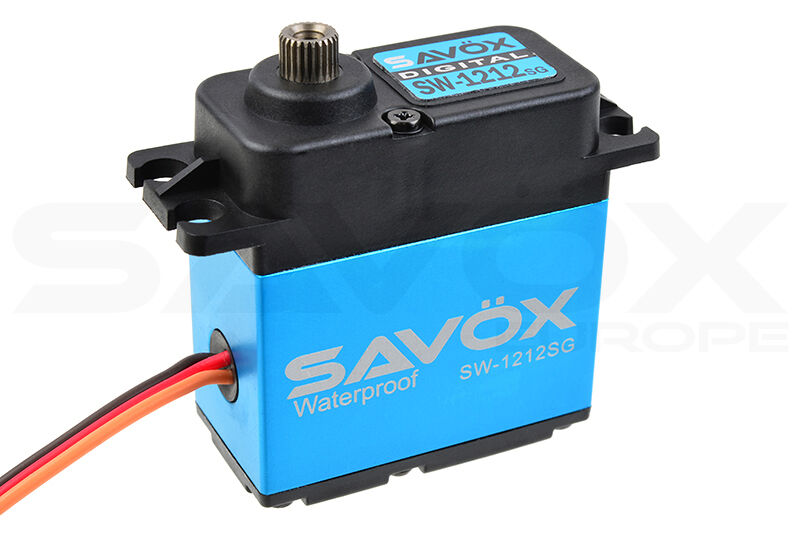

Savox - Servo - SW-1212SG - Digital - Coreless Motor - Waterproof

Savox - Servo - SW-1212SG - Digital - Coreless Motor - Waterproof - Steel Gear

Savöx

SW-1212SG

not in stock

€ 94,95 € 85,45

€ 70,62 excl. VAT

Servo - SW-1212SG - Digital - Coreless Motor - Waterproof - Steel Gear

This waterproof, steel-geared servo is perfect for Monster Truck and most Scaler and Crawler applications where a slightly taller servo can be fitted. Precision steel gears, stump-pulling torque, and waterproof to IP67 standards (operates for up to 30 minutes in water up to 3 feet deep).

Features:
• Center aluminum with nylon composite top and bottom case
• Operates directly on 7.4v without the need for an eternal BEC
• Precision ball bearings

Specifications:
• Torque @6.0V - 36.0 kg
• Torque @7.4v - 46.0 kg
• Speed @6.0V - 0.17 sec/60 deg
• Speed @7.4v - 0.14 sec/60 deg
• Weight: 83g
• Dimensions L x W x H mm: 40.6 x 20.7 x 46.1

General Info

Item Nr: SW-1212SG

Barcode: 4710006993829

Brand: Savöx

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,6

Width (mm): 20,7

Height (mm): 46,1

Weight (g): 83

Servo - Specs

Speed 60°/Sec @ 6.0V: 0,17

Speed 60°/Sec @ 7.4V: 0,14

Torque kg/cm @ 6.0V: 36

Torque kg/cm @ 7.4V: 46

Quiescent Current (mA): 5

Rated Current (mA): 150

Blocking Current (mA): 10000

Servo - Technology

Technology: Digital

Operating Voltage (V): 6.0V - 7.4V

Servo Motor: Coreless Motor

Servo Protection: Waterproof IP67

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Steel Gears

Servo Case: Aluminium + Composite Case

Connector: JR Universal + Colored Lead
