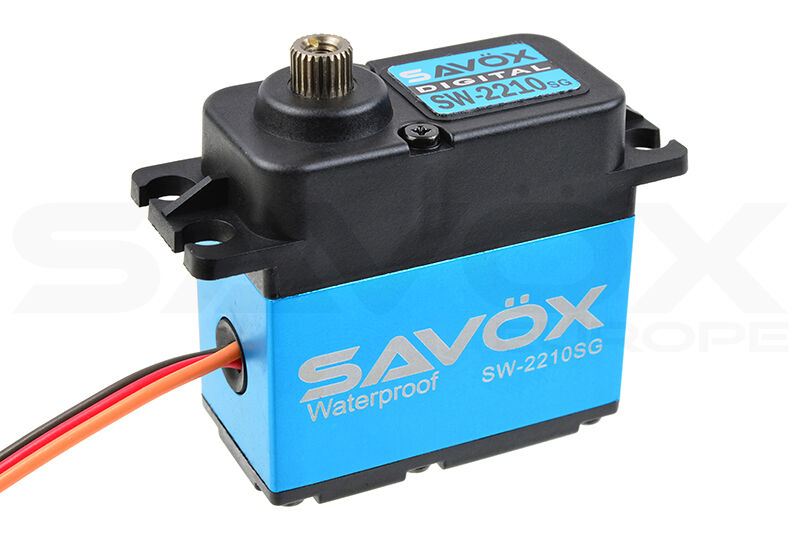

Savox - Servo - SW-2210SG - Digital - High Voltage - Brushless Motor - Waterproof

Savox - Servo - SW-2210SG - Digital - High Voltage - Brushless Motor - Waterproof - Steel Gear

Savöx

SW-2210SG

>10 in stock

€ 105,95 € 87,56 excl. VAT

Servo - SW-2210SG - Digital - High Voltage - Brushless Motor - Waterproof - Steel Gear

The SW-1250MG is a premium waterproof, ultra torque, digital mini servo that is the ultimate replacement for Traxxas 1/16 scale applications.

Features:
• Full aluminum waterproof case.
• Strong metal gear train for increased durability.
• Ultra torque and speed for mini applications
• Designed for Traxxas 1/16 vehicles.

Specifications:
• Torque @ 6.0v - 5.0 kg-cm
• Torque @ 7.4v - 8.0 kg-cm
• Speed @ 6.0v - 0.12 sec/60 deg
• Speed @ 7.4v - 0. 10sec/60 deg

General Info

Item Nr: SW-2210SG

Barcode: 4710006993836

Brand: Savöx

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,6

Width (mm): 20,7

Height (mm): 42

Weight (g): 79

Servo - Specs

Speed 60°/Sec @ 6.0V: 0,14

Speed 60°/Sec @ 7.4V: 0,11

Torque kg/cm @ 6.0V: 26

Torque kg/cm @ 7.4V: 36

Quiescent Current (mA): 5

Rated Current (mA): 220

Blocking Current (mA): 7400

Servo - Technology

Technology: Digital HV

Operating Voltage (V): 6.0V - 7.4V

Servo Motor: Brushless Motor

Servo Protection: Waterproof IP67

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Steel Gears

Servo Case: Aluminium + Composite Case

Connector: JR Universal + Colored Lead
