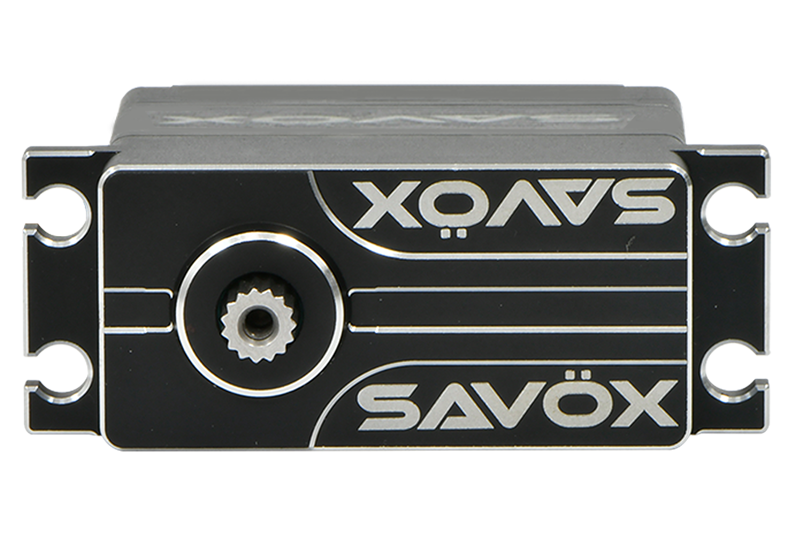

Savox SW-1240SG Digital High Voltage Waterproof Coreless Steel Gear Servo
The Savox SW-1240SG is a large / Rhino-size digital high-voltage waterproof coreless servo from the Savox Blue Line, designed for 1/5 scale off-road vehicles, large scale competition models and demanding waterproof RC applications. With 75.0 kg/cm torque at 8.4V and a speed of 0.15 sec/60° at 8.4V, this servo delivers extreme steering power for large-scale RC use.
The coreless motor provides smooth, efficient and responsive operation, while the digital high-voltage controller ensures accurate positioning and consistent control. The specialized steel gear train offers excellent durability and strength, making the SW-1240SG a strong choice for applications where large tyres, heavy vehicles and extreme terrain place very high loads on the servo.
The aluminium case provides strength, rigidity and improved heat dissipation, helping the servo perform reliably under heavy load. The Waterproof IP67 design protects the servo against water, mud, snow and dirt, making it ideal for large-scale off-road vehicles, boats, trail builds and all-weather RC applications.
Thanks to its Rhino-size format, 15T spline, 32-bit control board and Sanwa SSR compatibility, the SW-1240SG is built for serious 1/5 scale performance where maximum torque, waterproof protection and precise control are essential.
Features:
- Large / Rhino-size digital high-voltage waterproof servo
- Part of the Savox Blue Line
- Waterproof IP67 case design
- 75.0 kg/cm torque at 8.4V
- Speed 0.15 sec/60° at 8.4V
- Coreless motor for smooth, efficient and responsive operation
- Digital HV technology for accurate positioning and reliable control
- Specialized steel gears for maximum durability and heavy-duty use
- High-voltage operation up to 8.4V
- Aluminium case for strength, rigidity and improved heat dissipation
- 2 ball bearings for smooth and stable output support
- 15T spline output shaft
- 32-bit PCB for precise control
- Compatible with Sanwa SSR
- Ideal for 1/5 scale off-road vehicles, large scale competition cars, boats and heavy-duty waterproof RC applications
Technical Specifications:
- Model: SW-1240SG
- Servo Type: Large / Rhino-size digital high-voltage waterproof servo
- Line: Blue Line
- Application: Car / Large Scale RC / Boat
- Motor Type: Coreless motor
- Gear Type: Specialized steel gears
- Case Type: Aluminium case
- Operating Voltage: 6.0V – 8.4V
- Torque @ 6.0V: 50.0 kg/cm
- Torque @ 7.4V: 65.0 kg/cm
- Torque @ 8.4V: 75.0 kg/cm
- Speed @ 6.0V: 0.20 sec/60°
- Speed @ 7.4V: 0.17 sec/60°
- Speed @ 8.4V: 0.15 sec/60°
- Idle Current: 6 mA
- Operating Current @ 6.0V: 150 mA
- Operating Current @ 7.4V: 180 mA
- Operating Current @ 8.4V: 200 mA
- Stall Current @ 6.0V: 5000 mA
- Stall Current @ 7.4V: 6000 mA
- Stall Current @ 8.4V: 7000 mA
- Protection: Waterproof IP67
- Positioning: VR potentiometer
- PCB Board: 32-bit
- Bearings: 2x ball bearings
- Spline: 15T, 7.8 mm
- Rotating Direction: Counterclockwise
- Operating Travel: 100°
- Maximum Travel: Approx. 130°
- Neutral Position: 1500 μsec
- Frequency Range: 50–360 Hz
- Control System: Pulse width modification
- Dead Band Width: 3–5 μsec
- Cable Diameter: 22 AWG
- Cable Length: 450 ±5 mm
- Dimensions: 59.0 x 29.0 x 54.35 mm
- Weight: 196 g
- Compatibility: Sanwa SSR
- Connector: JR connector
- Operating Temperature: -10°C to 50°C
Packaging Content:
- 1x Savox SW-1240SG digital high-voltage waterproof coreless steel gear servo
- Standard servo mounting hardware
- Standard servo accessories
