Savox - Servo - SW-1211SG - Digital - Coreless Motor - Waterproof

Savox - Servo - SW-1211SG - Digital - Coreless Motor - Waterproof - Steel Gear

Savöx

SW-1211SG

>10 in stock

€ 89,95 € 74,34 excl. VAT

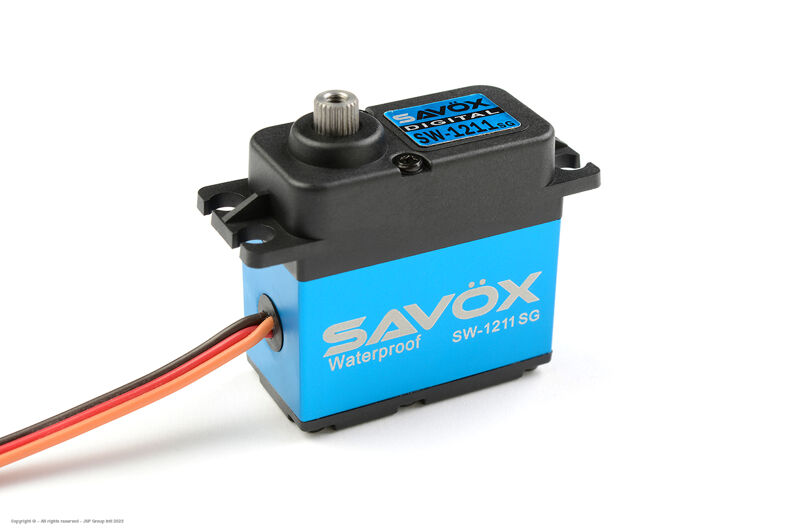

Servo - SW-1211SG - Digital - Coreless Motor - Waterproof - Steel Gear

The SW-1211SG Servo is an extremely versatile waterproof servo that's a great updgrade to standard RTR servos and fitsmAny conditions where use is vital in rain, sleet, or snow.

Features:
• Waterproof construction for harsh elements.
• Strong unique steel gears provide durability and assurance.
• Capable of HV operation.
• Ideal for 1/10 vehicles and boats

Specifications:
• Torque @6v - 15.0kg
• Torque @7.4v - 25.0kg
• Speed @6v - 0.10 sec/60 deg
• Speed @7.4v - 0.08 sec/60 deg
• Dimensions L x W x H (mm): 40.6 x 20.7 x 42.0
• Weight: 71.0g

General Info

Item Nr: SW-1211SG

Barcode: 4710006992495

Brand: Savöx

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,6

Width (mm): 20,7

Height (mm): 42

Weight (g): 71

Servo - Specs

Speed 60°/Sec @ 6.0V: 0,1

Speed 60°/Sec @ 7.4V: 0,08

Torque kg/cm @ 6.0V: 15

Torque kg/cm @ 7.4V: 25

Quiescent Current (mA): 5

Rated Current (mA): 150

Blocking Current (mA): 7400

Servo - Technology

Technology: Digital HV

Operating Voltage (V): 6.0V - 8.4V

Servo Motor: Coreless Motor

Servo Protection: Waterproof IP67

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Steel Gears

Servo Case: Aluminium + Composite Case

Connector: JR Universal + Colored Lead
