Savox SH-0350+ Digital DC Motor Servo
The Savox SH-0350+ is a micro digital DC motor servo designed for compact RC applications where low weight, reliable control and accurate response are important. With 2.6 kg/cm torque at 6.0V and a speed of 0.16 sec/60° at 6.0V, this servo offers practical performance in a lightweight 12.3 g micro-size format.
The DC motor provides smooth and predictable operation, while the digital controller ensures accurate positioning and reliable response. The high-strength composite gear train helps keep the servo light and efficient, making the SH-0350+ a practical choice for smaller RC models.
The hybrid aluminium/composite case combines low weight with improved strength and heat dissipation. Thanks to its compact size, 21T spline, dual ball bearing support and dust-resistant protection, the SH-0350+ is well suited for small aircraft, helicopters, cars and other compact RC applications where space and weight are limited.
Features:
- Micro digital DC motor servo
- 2.6 kg/cm torque at 6.0V
- Speed 0.16 sec/60° at 6.0V
- DC motor for smooth and predictable operation
- Digital controller for accurate positioning and reliable response
- High-strength composite gears for low weight and efficient operation
- Hybrid aluminium/composite case for strength, cooling and low weight
- 2 ball bearings for smooth and stable output support
- Dust-resistant protection
- 21T spline output shaft
- Lightweight design, only 12.3 g
- Ideal for small aircraft, helicopters, cars and compact RC applications
Technical Specifications:
- Model: SH-0350+
- Servo Type: Micro digital servo
- Motor Type: DC motor
- Gear Type: High-strength composite gears
- Case Type: Hybrid aluminium/composite case
- Operating Voltage: 4.8V – 6.0V
- Torque @ 4.8V: 2.2 kg/cm
- Torque @ 6.0V: 2.6 kg/cm
- Speed @ 4.8V: 0.21 sec/60°
- Speed @ 6.0V: 0.16 sec/60°
- Idle Current: 5 mA
- Operating Current @ 4.8V: 150 mA
- Operating Current @ 6.0V: 180 mA
- Stall Current @ 4.8V: 1200 mA
- Stall Current @ 6.0V: 1400 mA
- Protection: Dust resistant
- Positioning: VR potentiometer
- PCB Board: 10-bit
- Bearings: 2x ball bearings
- Spline: 21T, 4.8 mm

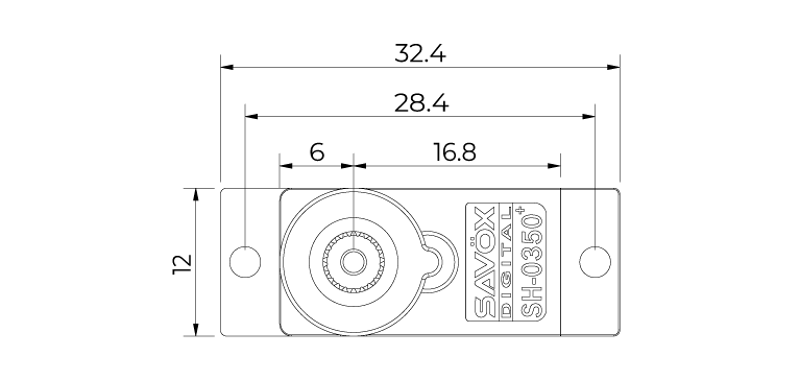

- Dimensions: 22.8 x 12.0 x 25.4 mm
- Weight: 12.3 g
- Connector: JR connector
- Cable Length: 250 ±5 mm
- Operating Temperature: -10°C to 50°C
Packaging Content:
- 1x Savox SH-0350+ digital micro servo
- Standard servo mounting hardware
- Standard servo accessories
