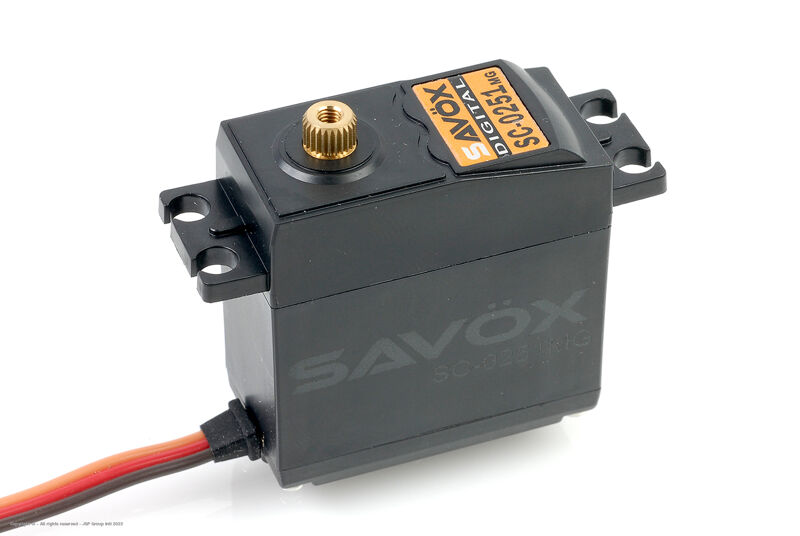

Savox - Servo - SC-0251MG+ - Digital - DC Motor

Savox - Servo - SC-0251MG+ - Digital - DC Motor - Metal Gear

Savöx

SC-0251MG+

not in stock

€ 38,95 € 32,19 excl. VAT

Servo - SC-0251MG+ Digital - Bell armature motor - Metal gearbox

The SC-0251MG+ is a fast digital servo ideal for RC cars but also suitable as a wing servo
The "Plus" series servos are compatible with Soft Start and Sanwa SSR.

Features:
• Precise and fast response
• Fine resolution
• Ball bearing
• Precision metal gears
• Soft start and SSR compatible

Specifications:
• Torque: 4.8 - 6V
• Speed: 0.09-0.10
• Actuating force: 7-9 kg
• Dimension L x W x H mm: 40.8 x 20.2 x 25.4 mm
• Weight: 44,5 g

General Info

Brand: Savöx

Item Nr: SC-0251MG+

Barcode: 5413911289948

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,7

Width (mm): 20

Height (mm): 42,4

Weight (g): 61

Servo - Specs

Speed 60°/Sec @ 6.0V: 0,18

Torque kg/cm @ 6.0V: 16

Servo - Technology

Technology: Digital

Operating Voltage (V): 4.8V - 6.0V

Servo Motor: DC Core Motor

Servo Protection: Water - Dust Resistant

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Metal Gears

Servo Case: Composite Case

Connector: JR Universal + Colored Lead
