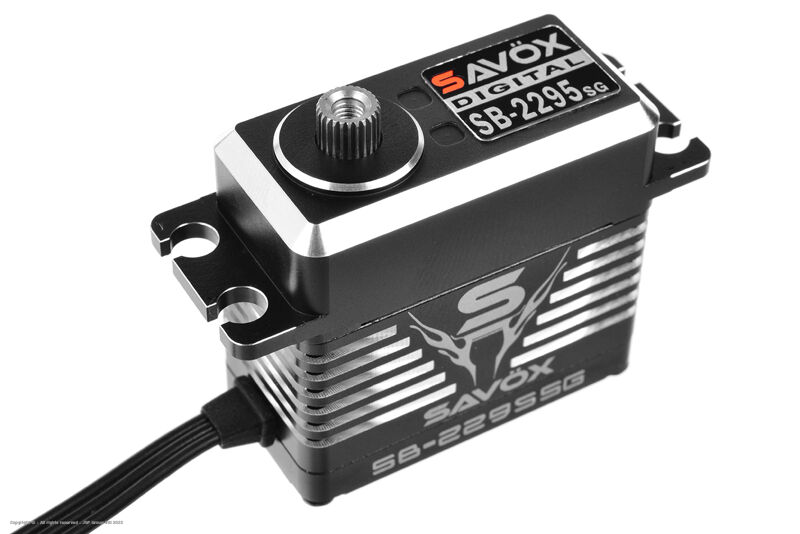

Savox - Servo - SB-2295SG - Digital - High Voltage - Brushless Motor

Savox - Servo - SB-2295SG - Digital - High Voltage - Brushless Motor - Steel Gear

Savöx

SB-2295SG

>10 in stock

€ 195,95 € 161,94 excl. VAT

Servo - SB-2295SG - Digital - High Voltage - Brushless Motor - Steel Gear

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:
• Full Aluminum Case
• 3 Precision Ball Bearings.
• Unique steel gears

Specifications:
• Torque @ 7.4V - 32.0kg
• Speed @ 7.4V - 0.060sec/60 deg
• Torque @ 8.4V - 40.0kg
• Speed @ 8.4V - 0.050sec/60 deg
• Dimensions L x W x H mm: 40.3 x 20.2 x 38.7
• Weight: 79.0g

General Info

Item Nr: SB-2295SG

Barcode: 4710006994130

Brand: Savöx

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,3

Width (mm): 20,2

Height (mm): 38,7

Weight (g): 79

Servo - Specs

Speed 60°/Sec @ 7.4V: 0,06

Speed 60°/Sec @ 8.4V: 0,05

Torque kg/cm @ 7.4V: 32

Torque kg/cm @ 8.4V: 40

Quiescent Current (mA): 5

Rated Current (mA): 220

Blocking Current (mA): 10500

Servo - Technology

Technology: Digital HV

Operating Voltage (V): 6.0V - 8.4V

Servo Motor: Brushless Motor

Servo Protection: Water - Dust Resistant

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Steel Gears

Servo Case: Aluminium Case

Connector: JR Universal + Black Lead
