SB-2292SG - Savox - Servo - Digital - High Voltage - Brushless Motor

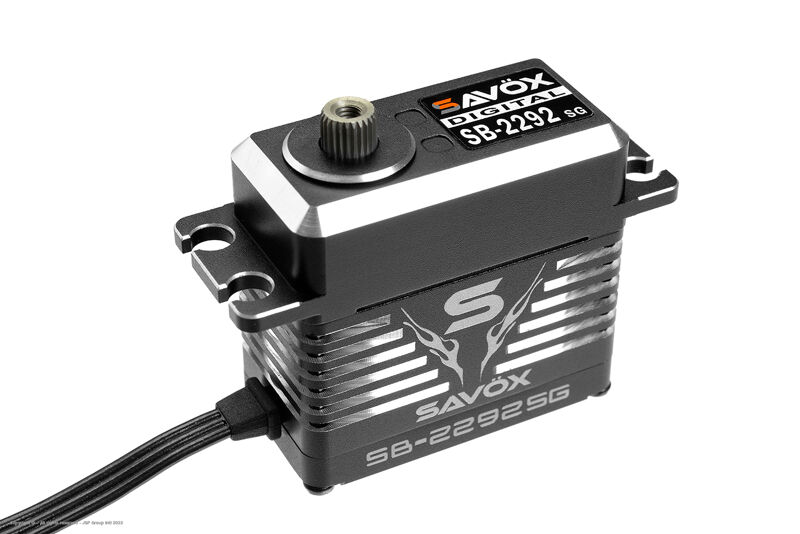

Savox - Servo - SB-2292SG - Digital - High Voltage - Brushless Motor - Steel Gear

Savöx

SB-2292SG

Only 1 in stock

€ 152,95 € 126,41 excl. VAT

Servo - SB-2292SG - Digital - High Voltage - Brushless Motor - Steel Gear

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:
• Full Aluminum Case
• 3 Precision Ball Bearings.
• Unique steel gears

Specifications:
• Torque @ 6v - 22.0kg
• Torque @ 7.4v - 31.0kg
• Torque @ 8.4v - 45.0kg
• Speed @ 6v - 0.085 sec/60 deg
• Speed @ 7.4v - 0.07sec/60 deg
• Speed @ 8.4v - 0.055sec/60 deg
• Dimensions L x W x H mm: 40.3 x 20.2 x 38.7
• Weight: 81g

General Info

Item Nr: SB-2292SG

Barcode: 4710006993409

Brand: Savöx

Servo - Specs

Speed 60°/Sec @ 6.0V: 0,09

Speed 60°/Sec @ 7.4V: 0,07

Speed 60°/Sec @ 8.4V: 0,06

Torque kg/cm @ 6.0V: 22

Torque kg/cm @ 7.4V: 31

Torque kg/cm @ 8.4V: 45

Quiescent Current (mA): 5

Rated Current (mA): 220

Blocking Current (mA): 9200

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,3

Width (mm): 20,2

Height (mm): 38,7

Weight (g): 81

Servo - Technology

Technology: Digital HV

Operating Voltage (V): 6.0V - 8.4V

Servo Motor: Brushless Motor

Servo Protection: Water - Dust Resistant

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Steel Gears

Servo Case: Aluminium Case

Connector: JR Universal + Black Lead

Safety Documents:

SB-2292SG_CE_DeclarationForm_EN_12072017
