SB-2270SG - Savox - Servo - Digital - High Voltage - Brushless Motor

Savox - Servo - SB-2270SG - Digital - High Voltage - Brushless Motor - Steel Gears

BLACK FRIDAY DEAL

Savöx

SB-2270SG

Only 1 in stock

€ 105,95 € 87,56 excl. VAT

Servo - SB-2270SG - Digital - High Voltage - Brushless Motor - Steel Gears

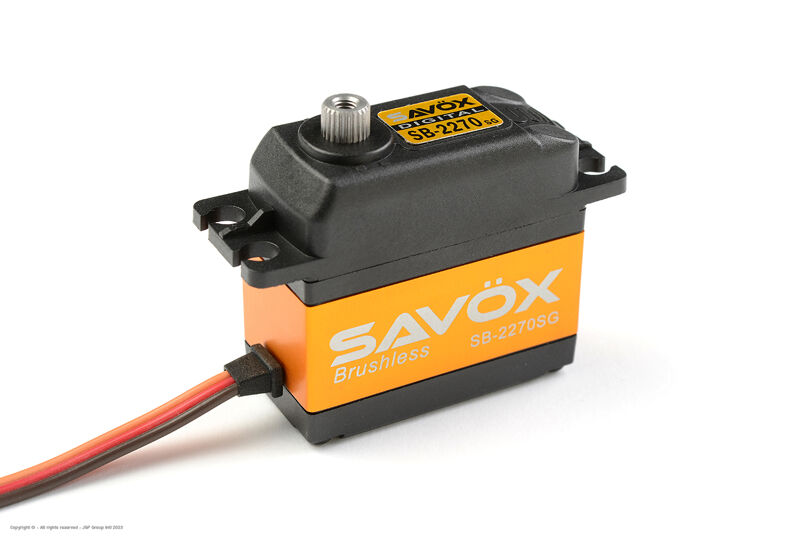

This is the Savox SB-2270SG Monster Torque Brushless Steel Gear Digital Servo which combines leading edge technology with super high 12 bit (4096) resolution.

Features:
• Extremely strong unique steel gears ensure long-life and durability.
• Capable of HV operation.
• Brushless motor for smooth operation and efficiency.
• Ideal for rock crawlers, monster trucks, and control surfaceS for giant scale aircraft.

Specifications:
• Torque @ 6v - 25.0kg
• Torque @ 7.4v - 32.0kg
• Speed @ 6v - 0.15 sec/60 deg
• Speed @ 7.4v - 0.12 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Weight: 69.0g

General Info

Item Nr: SB-2251SG

Barcode: 4710006992266

Brand: Savöx

Servo - Specs

Speed 60°/Sec @ 6.0V: 0,09

Speed 60°/Sec @ 7.4V: 0,12

Speed 60°/Sec @ 8.4V: 0,11

Torque kg/cm @ 6.0V: 15

Torque kg/cm @ 7.4V: 32

Torque kg/cm @ 8.4V: 45

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,3

Width (mm): 20

Height (mm): 37,2

Weight (g): 68

Servo - Technology

Technology: Digital

Operating Voltage (V): 4.8V - 6.0V

Servo Motor: Brushless Motor

Servo Protection: Water - Dust Resistant

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Steel Gears

Servo Case: Aluminium + Composite Case

Connector: JR Universal + Colored Lead
