Savox SB-2264MG Digital High Voltage Brushless Metal Gear Servo
The Savox SB-2264MG is a low-profile digital high-voltage servo designed for RC applications where fast response, reliable torque and compact installation space are important. With 19.0 kg/cm torque at 8.4V and a speed of 0.08 sec/60° at 8.4V, this servo offers an excellent balance of speed, strength and precision in a compact low-profile format.
The brushless motor provides high efficiency, longer service life and cooler operating temperatures compared to conventional motor designs. Combined with digital high-voltage servo technology and super high resolution, the SB-2264MG delivers accurate positioning, fast response and consistent control under load.
The precision metal gear train is built for durability in demanding conditions, while the full aluminium case provides strength and improved heat dissipation. Thanks to its low-profile design, 25T spline and water/dust-resistant protection, the SB-2264MG is an excellent choice for 1/10 scale on-road cars, 1/10 off-road racing vehicles, helicopters and other RC applications where speed, precision and compact size are essential.
Features:
- Low-profile digital high-voltage brushless servo
- 19.0 kg/cm torque at 8.4V
- Speed 0.08 sec/60° at 8.4V
- Brushless motor for longer life, high efficiency and cooler operation
- Digital HV technology for precise and reliable control
- Super high resolution for accurate response
- Precision metal gears for durability under demanding conditions
- Full aluminium case for strength and improved heat dissipation
- Ball bearing support
- Water/dust-resistant protection
- 25T spline output shaft
- Compact low-profile design for space-limited installations
- Ideal for 1/10 scale on-road cars, 1/10 off-road vehicles, helicopters and high-speed steering applications
Technical Specifications:
- Model: SB-2264MG
- Servo Type: Low-profile digital high-voltage servo
- Motor Type: Brushless motor
- Gear Type: Metal gears
- Case Type: Aluminium case
- Operating Voltage: 6.0V – 8.4V
- Torque @ 6.0V: 12.0 kg/cm
- Torque @ 7.4V: 15.0 kg/cm
- Torque @ 8.4V: 19.0 kg/cm
- Speed @ 6.0V: 0.11 sec/60°
- Speed @ 7.4V: 0.09 sec/60°
- Speed @ 8.4V: 0.08 sec/60°
- Quiescent Current: 5 mA
- Rated Current: 250 mA
- Blocking Current: 5000 mA
- Protection: Water/dust resistant
- Positioning: VR potentiometer, direct drive
- Spline: 25T, 6.0 mm

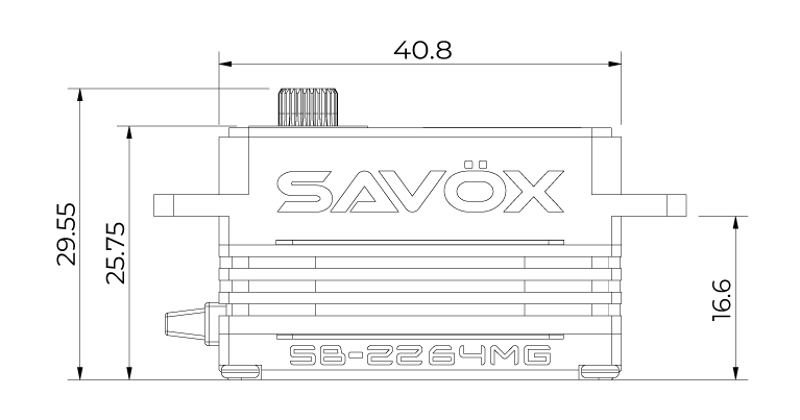

- Dimensions: 40.8 x 20.2 x 25.75 mm
- Weight: 57 g
- Connector: JR universal connector with coloured lead
Packaging Content:
- 1x Savox SB-2264MG digital high-voltage brushless servo
- Standard servo mounting hardware
- Standard servo accessories
