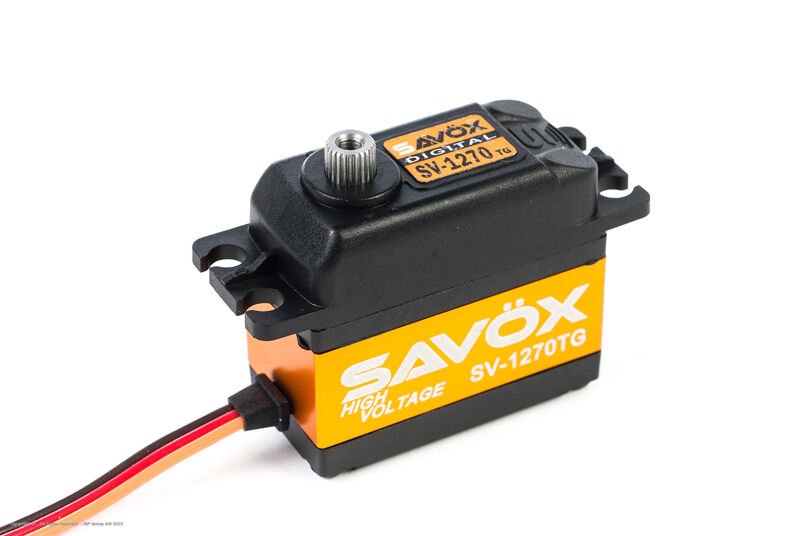

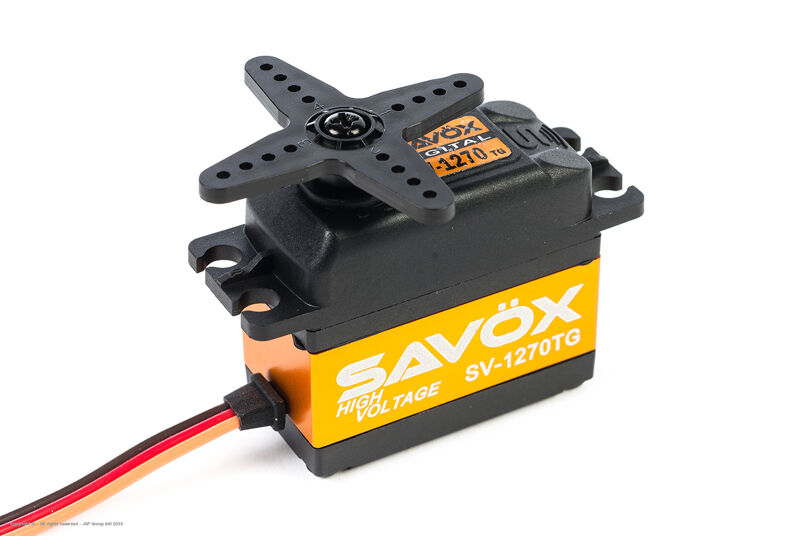

Savox - Servo - SV-1270TG - Digital - High Voltage - Coreless Motor

Savox - Servo - SV-1270TG - Digital - High Voltage - Coreless Motor - Titanium Gear

Savöx

SV-1270TG

5 in stock

€ 111,95 € 92,52 excl. VAT

Servo - SV-1270TG - Digital - High Voltage - Coreless Motor - Titanium Gear

This is the Savox SV-1270TG Digital High Voltage "Monster Torque" Titanium Gear Servo. Built to handle extreme requirements, this servo delivers.

Features:
• Super strong, precision made titanium gears provide durability that will survive heavy use.
• Ideal for large-scale airplane, 1/8 truck, and Monster Truck applications
• Capable of HV operation.
• The servo that racers desire.

Specifications:
• Torque @6v - 26.0kg
• Torque @7.4v - 35.0kg
• Speed @6v - 0.14 sec/60 deg
• Speed @7.4v - 0.11 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
• Weight: 56.0g

General Info

Item Nr: SV-1270TG

Barcode: 4710006990712,00

Brand: Savöx

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,30

Width (mm): 20,20

Height (mm): 37,20

Weight (g): 56,00

Servo - Specs

Speed 60°/Sec @ 6.0V: 0,14

Speed 60°/Sec @ 7.4V: 0,11

Torque kg/cm @ 6.0V: 26,00

Torque kg/cm @ 7.4V: 35,00

Quiescent Current (mA): 5,00

Rated Current (mA): 150,00

Blocking Current (mA): 6800,00

Servo - Technology

Technology: Digital HV

Operating Voltage (V): 6.0V - 7.4V

Servo Motor: Coreless Motor

Servo Protection: Water - Dust Resistant

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Titanium Gears

Servo Case: Aluminium + Composite Case

Connector: JR Universal + Colored Lead
