Savox - Servo - SH-0253 - Digital

Savox - Servo - SH-0253 - Digital - DC Motor

Savöx

SH-0253

>10 in stock

€ 22,05 € 18,22 excl. VAT

Servo - SH-0253 - Digital - DC Motor

The Savox SH-0253 micro, digital servo has a nice balance of torque and speed in addition to using a combination of industrial plastic and metal gears for added durabilty and smoothness.

Features:
• Aluminum middle case allows for cooler operating temperatures.
• Industrial plastic and metal gear train ensures durability and longevity.
• Ideal for small planes, and 450 size helicopters.

Specifications:
• Torque @4.8v - 1.8kg
• Torque @6v - 2.2kg
• Speed @4.8v - 0.13 sec/60 deg
• Speed @6v - 0.09 sec/60 deg
• Dimensions L x W x H (mm):22.8 x 12.0 x 25.4
• Weight: 13.6g

General Info

Item Nr: SH-0253

Barcode: 4715104190101

Brand: Savöx

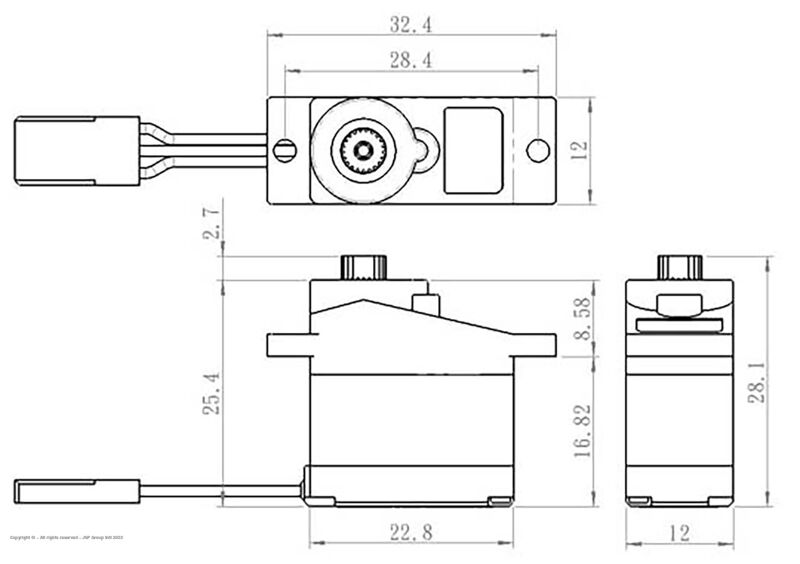

Servo - Dimensions

Servo Type: Mini Servo

Spline Type: 21T Spline

Length (mm): 22,8

Width (mm): 12

Height (mm): 25,4

Weight (g): 13,6

Servo - Specs

Speed 60°/Sec @ 4.8V: 0,13

Speed 60°/Sec @ 6.0V: 0,09

Torque kg/cm @ 4.8V: 1,8

Torque kg/cm @ 6.0V: 2,2

Quiescent Current (mA): 5

Rated Current (mA): 180

Blocking Current (mA): 1200

Servo - Technology

Technology: Digital

Operating Voltage (V): 4.8V - 6.0V

Servo Motor: DC Core Motor

Servo Protection: Water - Dust Resistant

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Composite Gears

Servo Case: Aluminium + Composite Case

Connector: JR Universal + Colored Lead
