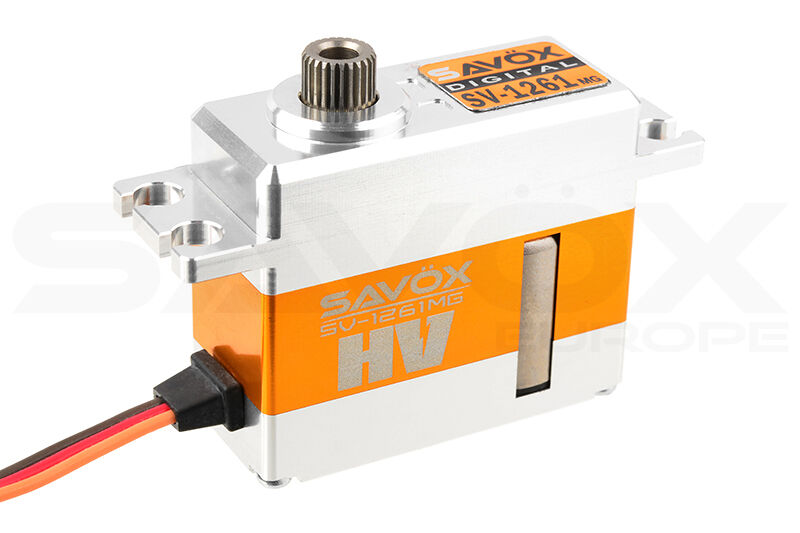

Savox - Servo - SV-1261MG - Digital - High Voltage - Coreless Motor

Savox - Servo - SV-1261MG - Digital - High Voltage - Coreless Motor - Metal Gear

Savöx

SV-1261MG

not in stock

€ 86,95 € 71,86 excl. VAT

Servo - SV-1261MG - Digital - High Voltage - Coreless Motor - Metal Gear

The SV1261MG takes the performance of the SV1260MG and utilizing the same size case, increased the torque to a whopping 277oz/in while maintaining an impressive 0.095 second transit time. Primarily intended for air applications, this powerhouse can also be used in specialty cars, trucks, and boats and is intended to be used on direct 7.4V LiPo current.

Features:
• Metal gear train provide durability against heavy use
• Capable of HV operation
• All aluminum case provides strength and cooler operating temperatures

Specifications:
• Torque @ 7.4v: 20.0kg
• Torque @ 6.0v: 15.0kg
• Speed @ 7.4v: 0.095 sec/60 deg
• Speed @ 6.0v: 0.12 sec/60 deg
• Dimensions L x W x H (mm): 35 x 15 x 30.7
• Weight: 40.0g

General Info

Item Nr: SV-1261MG

Barcode: 4710006993768

Brand: Savöx

Servo - Dimensions

Servo Type: Mini Servo

Spline Type: 25T Spline

Length (mm): 35

Width (mm): 15

Height (mm): 30,7

Weight (g): 40

Servo - Specs

Speed 60°/Sec @ 6.0V: 0,12

Speed 60°/Sec @ 7.4V: 0,1

Torque kg/cm @ 6.0V: 15

Torque kg/cm @ 7.4V: 20

Quiescent Current (mA): 5

Rated Current (mA): 180

Blocking Current (mA): 4700

Servo - Technology

Technology: Digital HV

Operating Voltage (V): 6.0V - 7.4V

Servo Motor: Coreless Motor

Servo Protection: Water - Dust Resistant

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Metal Gears

Servo Case: Aluminium Case

Connector: JR Universal + Colored Lead
