Savox - Servo - SH-0257MG+ - Digital - DC Motor

Savox - Servo - SH-0257MG+ - Digital - DC Motor - Metal Gear

Savöx

SH-0257MG+

>10 in stock

€ 21,95 € 18,14 excl. VAT

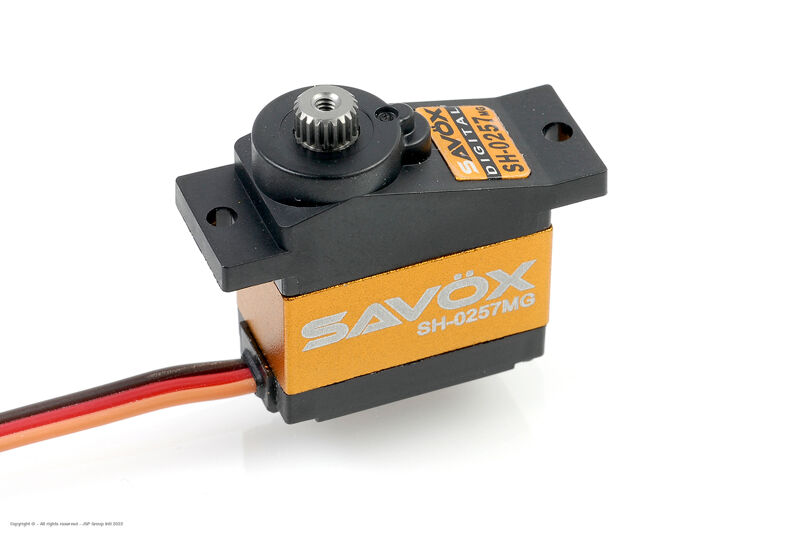

Servo - SH-0257MG+ - Digital - DC Motor - Metal Gear

The Savox SH-0257MG Plus metal-gear, high-torque, digital, micro servo produces as much output torque as larger servos, but without sacrificing speed."Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:
• Metal gear train ensures durability and longevity.
• Aluminum middle case allows for cooler operating temperatures.
• Ideal for small planes, and 450 size helicopters.

Specifications:
• Torque @ 4.8v - 1.8kg
• Torque @ 6v - 2.2kg
• Speed @ 4.8v - 0.13 sec/60 deg
• Speed @ 6v - 0.09 sec/60 deg
• Dimensions L x W x H (mm):22.8 x 12.0 x 25.4
• Weight: 14.0g

General Info

Item Nr: SH-0257MG+

Barcode: 4710006994277

Brand: Savöx

Servo - Dimensions

Servo Type: Micro Servo

Spline Type: 21T Spline

Length (mm): 22,8

Width (mm): 12

Height (mm): 25,4

Weight (g): 13,6

Servo - Specs

Speed 60°/Sec @ 4.8V: 0,13

Speed 60°/Sec @ 6.0V: 0,09

Torque kg/cm @ 4.8V: 1,8

Torque kg/cm @ 6.0V: 2,2

Quiescent Current (mA): 5

Rated Current (mA): 180

Blocking Current (mA): 1200

Servo - Technology

Technology: Digital

Operating Voltage (V): 4.8V - 6.0V

Servo Motor: DC Core Motor

Servo Protection: Water - Dust Resistant

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Metal Gears

Servo Case: Aluminium + Composite Case

Connector: JR Universal + Colored Lead
