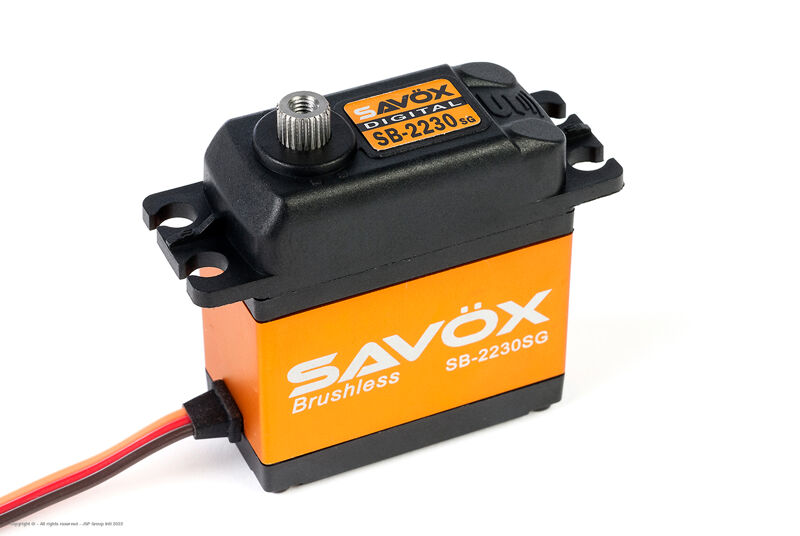

Savox - Servo - SB-2230SG - Digital - High Voltage - Brushless Motor

Savox - Servo - SB-2230SG - Digital - High Voltage - Brushless Motor - Steel Gears

Savöx

SB-2230SG

>10 in stock

€ 125,95 € 104,09 excl. VAT

Servo - SB-2230SG - Digital - High Voltage - Brushless Motor - Steel Gears

The Savox SB-2230SG Monster Torque Brushless servo contains unique steel gears to accommodate the massive output torque of this servo in a slightly taller case design.

Features:
• Combines leading edge technology with super high 12 bit (4096) resolution.
• Ideal for giant scale aircraft, monster truck, and 1/8 scale off road.
• Brushless motor provides longer life and cooler operating temps.
• Extremely strong unique steel gears ensure long-life and durability

Specifications:
• Torque @ 6v - 36.0kg
• Torque @ 7.4v - 42.0kg
• Speed @ 6v - 0.16 sec/60 deg
• Speed @ 7.4v - 0.13 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 44.9
• Weight: 84g

General Info

Item Nr: SB-2230SG

Barcode: 4710006992112

Brand: Savöx

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,3

Width (mm): 20,2

Height (mm): 44,9

Weight (g): 84

Servo - Specs

Speed 60°/Sec @ 6.0V: 0,16

Speed 60°/Sec @ 7.4V: 0,13

Speed 60°/Sec @ 8.4V: 0,11

Torque kg/cm @ 6.0V: 36

Torque kg/cm @ 7.4V: 42

Torque kg/cm @ 8.4V: 55

Servo - Technology

Technology: Digital HV

Operating Voltage (V): 6.0V - 8.4V

Servo Motor: Brushless Motor

Servo Protection: Water - Dust Resistant

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Steel Gears

Servo Case: Aluminium + Composite Case

Connector: JR Universal + Colored Lead
